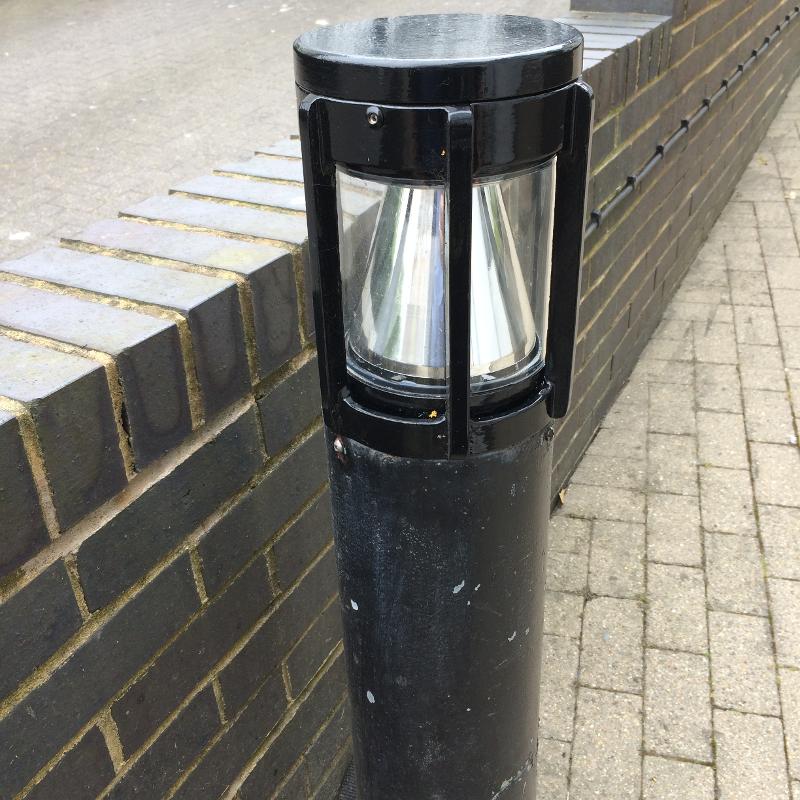

Car Park Bollards - Meriden by Candela Ltd

www.candela.co.uk

Meriden bollard.pdf Meriden bollard.pdf
Size : 101.598 Kb
Type : pdf

New LED Bollard Heads fitted July 2016




Balcony Light Fittings

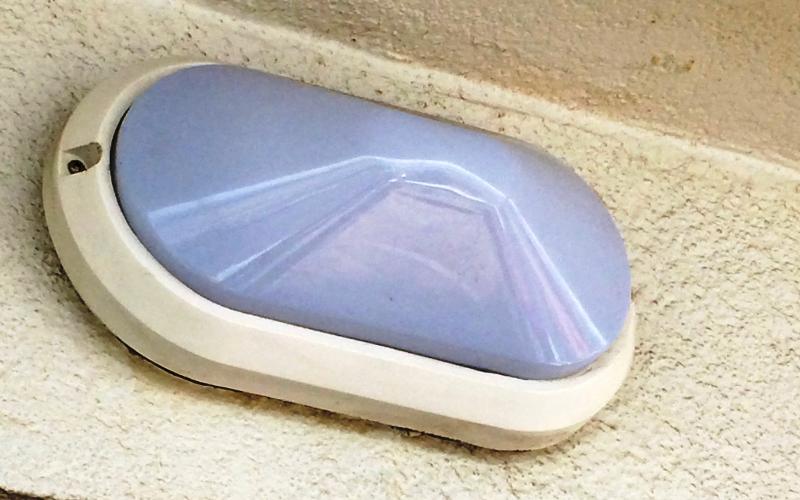

Oval

Original fittings "Massive" By Philips Sunderland Cezanne Oval Bulkhead 60W white 714100131 now discontinued.

Replacement
WHITE OVAL TERANG 2 XL WALL AND CEILING LIGHT IP44 22W LED 3000K

electricalcounter.co.uk    01233 469228

https://www.electricalcounter.co.uk/products/Lighting/Outdoor+Lighting/SLV+Outdoor+Lighting/Wall+%26+Ceiling+Lights/Wall+%26+Ceiling+Lights/White+Oval+Terang+2+XL+Wall+and+Ceiling+Light+IP44+22W+LED+3000K/3559595485

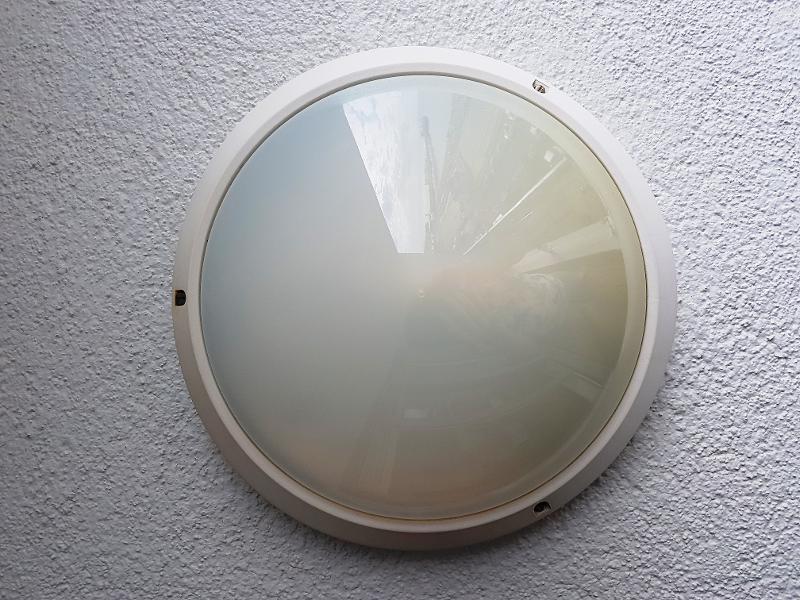

Round


Slimline 10W Cool White LED Flush 2D Bulkhead Wall / Ceiling Light Fitting

Sold by: Strictly Lamps

The Van Alen Management Company has a stock of both the oval and the round balcony light fittings available- please contact David Brown or GSP





Internal Doors

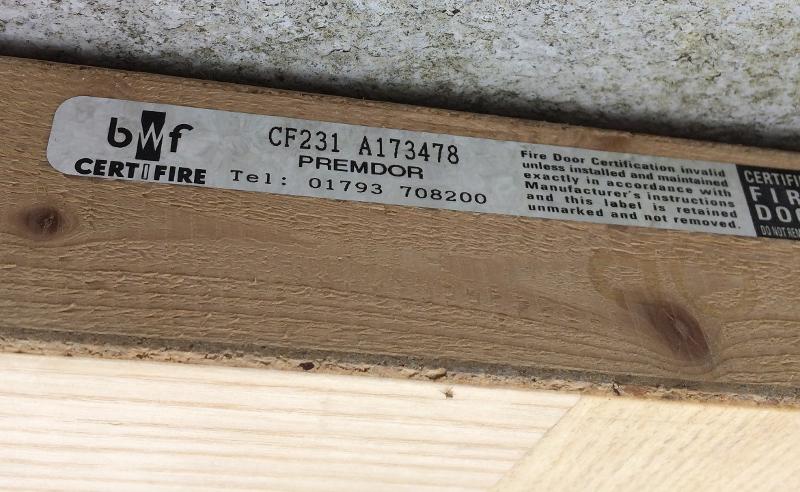

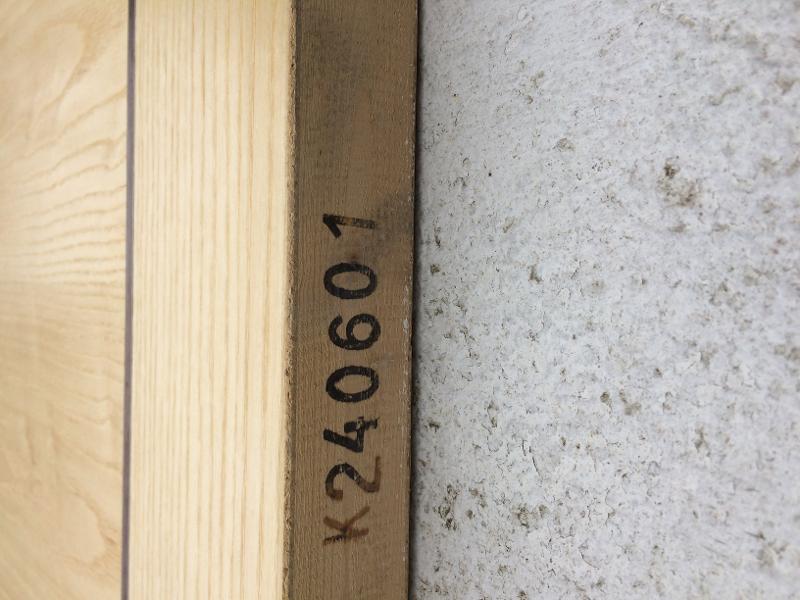

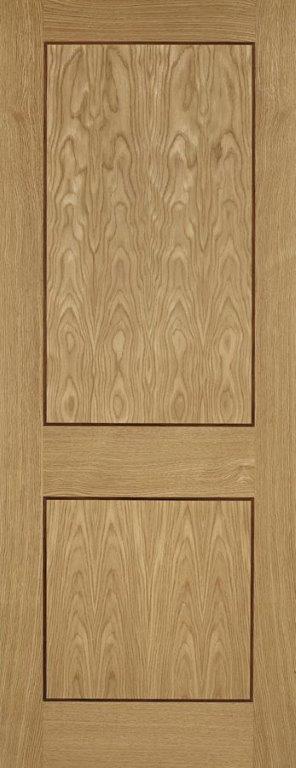

The original doors were manufactured by Premdor and are no longer available. They are oak inlay 2 panel. For some applications in The Van Alen they need to be FD30 fire rated doors.

Door faced both sides with crown cut American White Oak veneer laid in a stile and rail pattern with vertical grain to the stiles and central area and horizontal grain to the top, middle and bottom rails with a 10mm wide American Black Walnut veneer inlays. Modern Doors Ltdcan custom make doors to this pattern.

Modern Doors Ltd.

tel.                   020 3150 3103

direct email.  [email protected]

email.              [email protected]

web.                www.modern-doors.co.uk



http://cjsmithdoors.co.uk/internal-supermodels/

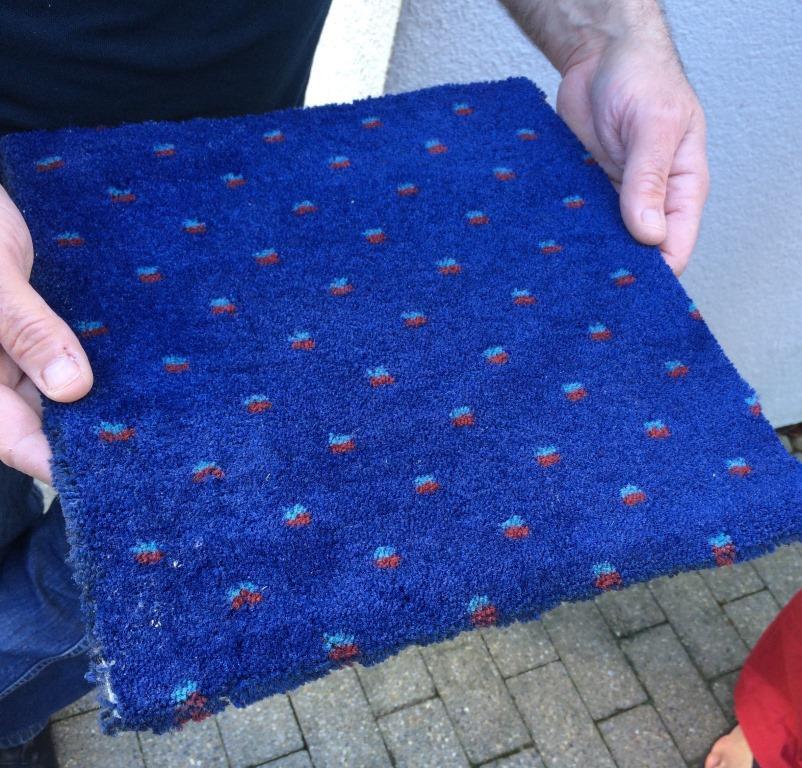

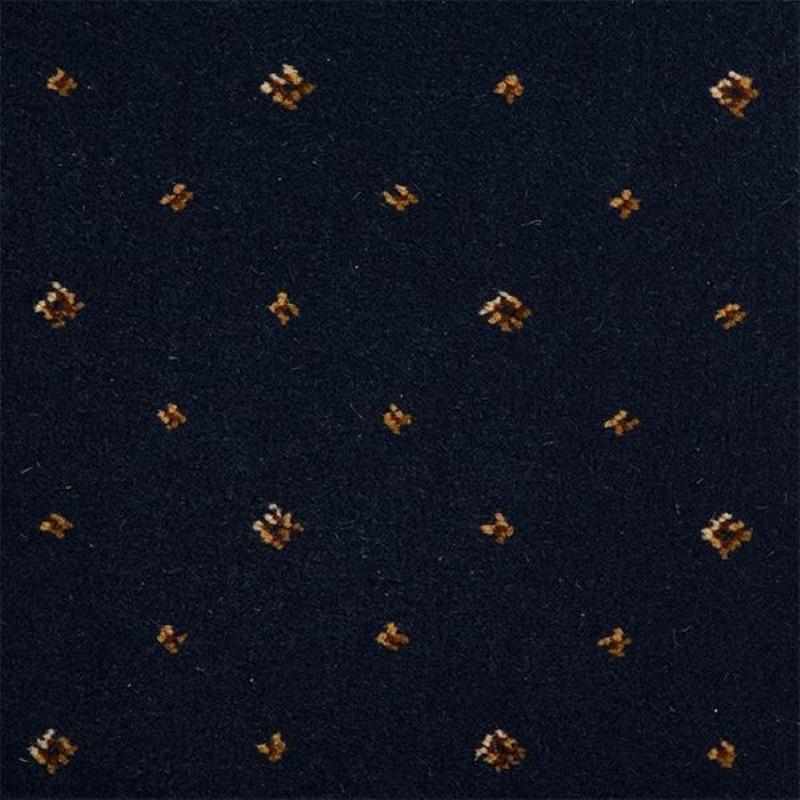

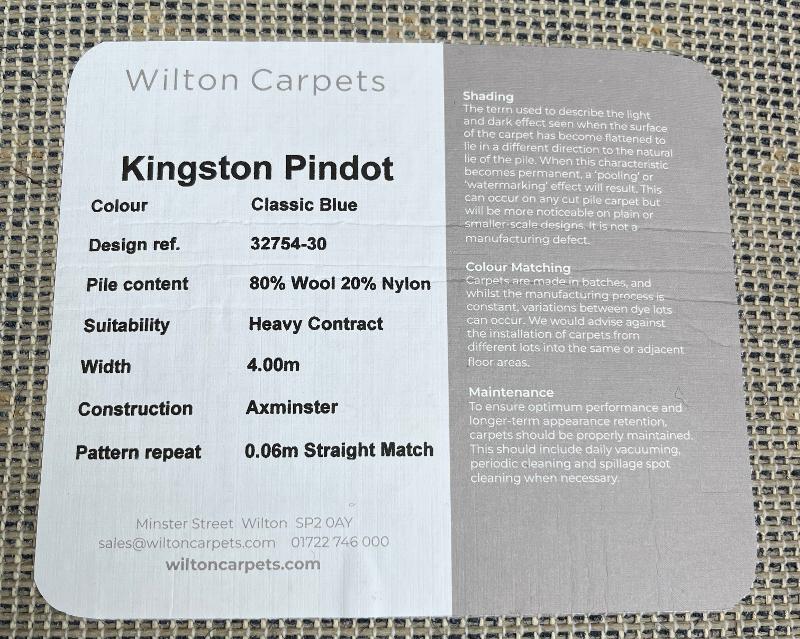

Carpet

The carpet in the communal areas was made by Comar Carpets and came from their Concept Range

Rain water goods

Alumasc Flush Joint round pipe 76mm in RAL 7038 agate Grey available from Drain Centre 01732 773758

External Doors and Windows

We think that the doorframes are Reynaers CS77 System and the doors have HKS 180 Hautau tilt and slide hardware fitted.

Supplier M Price Ltd

Glass Spec for windows:

6mm toughened grey antisun

12mm silver spacer

12.8mm laminated acoustic

M Price Contact

Andrew Down Maintenance Manager

1 Haslemere Business Centre Lincoln Way Enfield Middlesex EN1 1DX United Kingdom

T: +44 (0)871 542 0803 F: +44 (0)871 542 0802 M: +44 (0)773 403 0041

www.mprice.co.uk

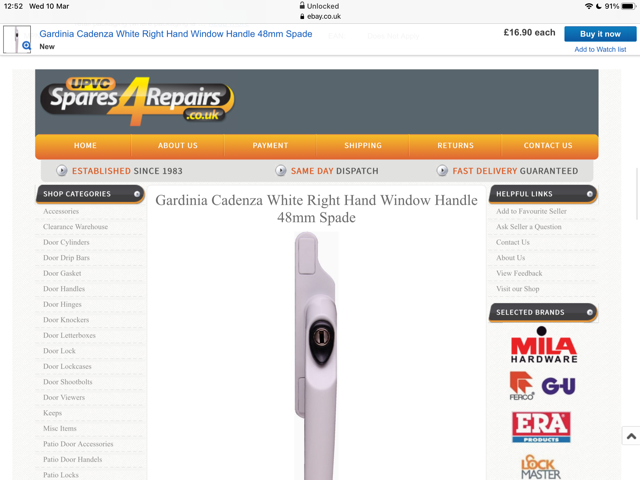

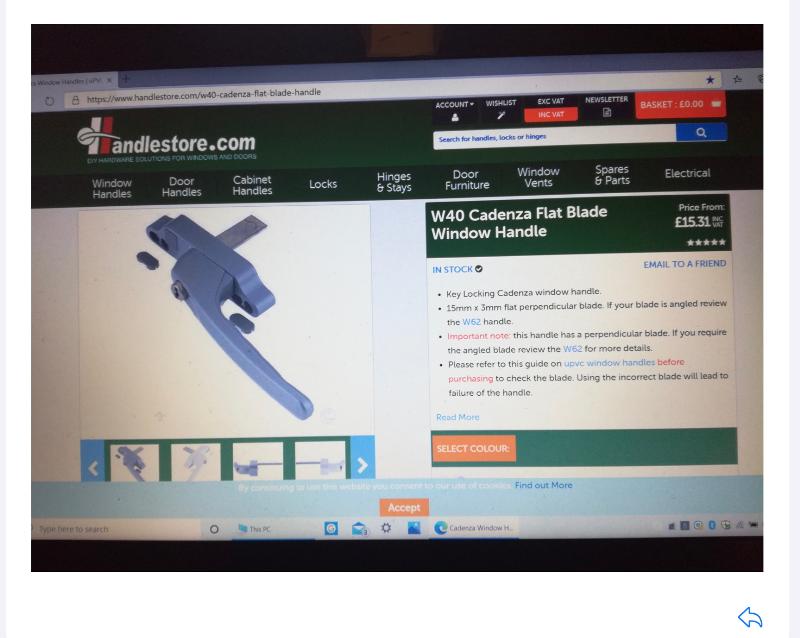

Window handle

The handle pictured above was a perfect replacement.  Note The Van Alen handles have a black key insert. Cut the spade length to make it identical to the broken one it replaced.

For the small additional cost you should consider replacing all the window handles at the same time, then they will match perfectly.

https://www.ebay.co.uk/itm/Gardinia-Cadenza-White-Right-Hand-Window-Handle-48mm-Spade-/221994987714?_trksid=p2349624.m46890.l49292



 https://upvcspares4repairs.co.uk/?gclid=EAIaIQobChMImtWnrs-l7wIVlJCyCh3wqQINEAAYASAAEgJtdvD_BwE

Handlestore.com

W40 Cadenza Flat Blade Window Handle

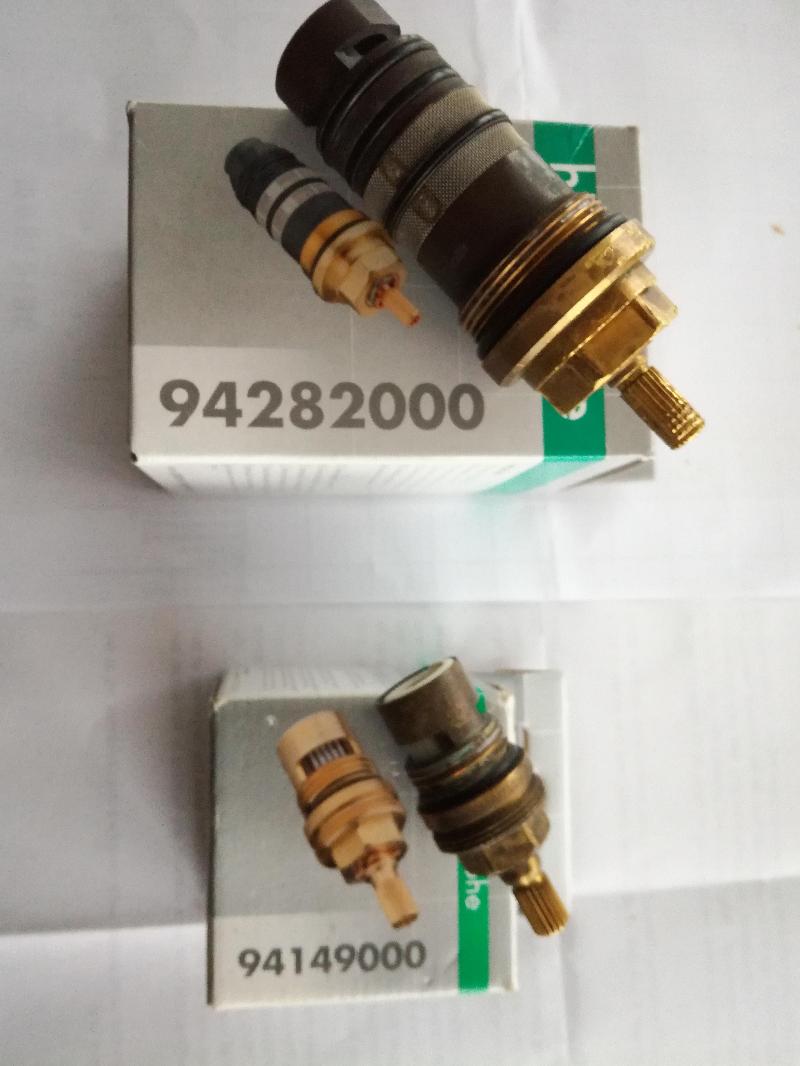

Hansgrohe shower cartridge Part No 9428200 and mixer tap cartridge Part Number 9414900 www.hansgrohe.co.uk Tel 01372 465655

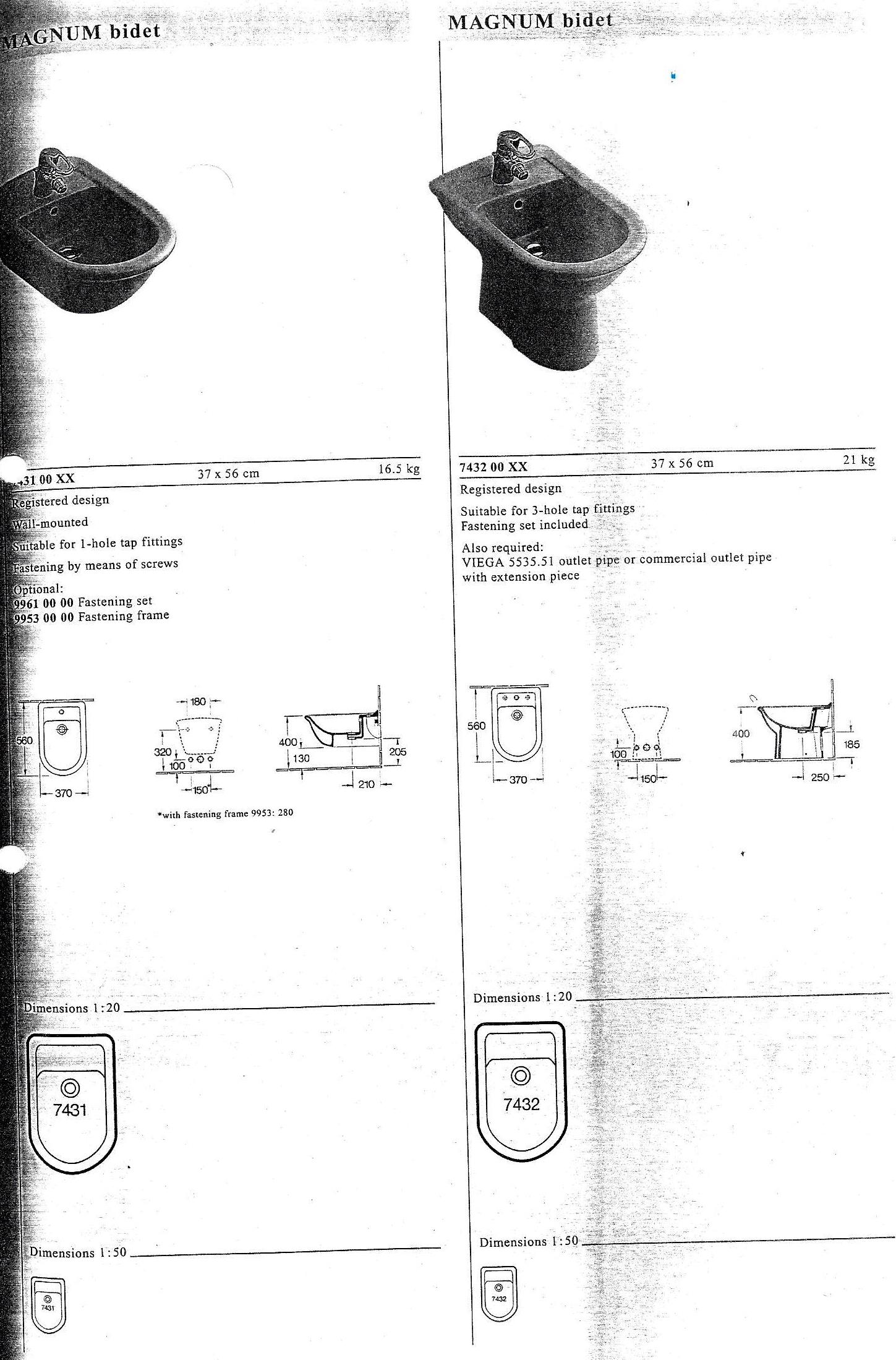

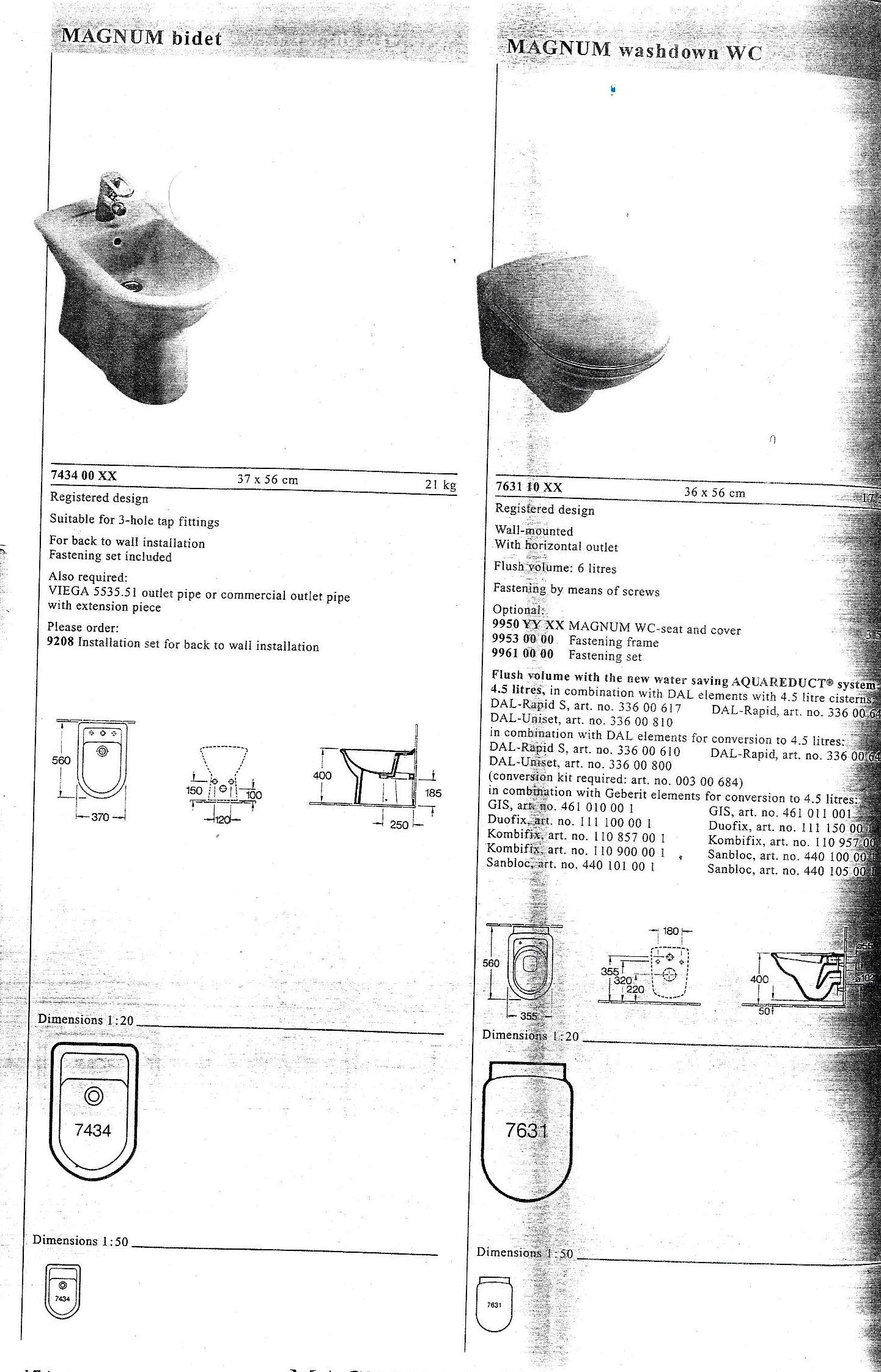

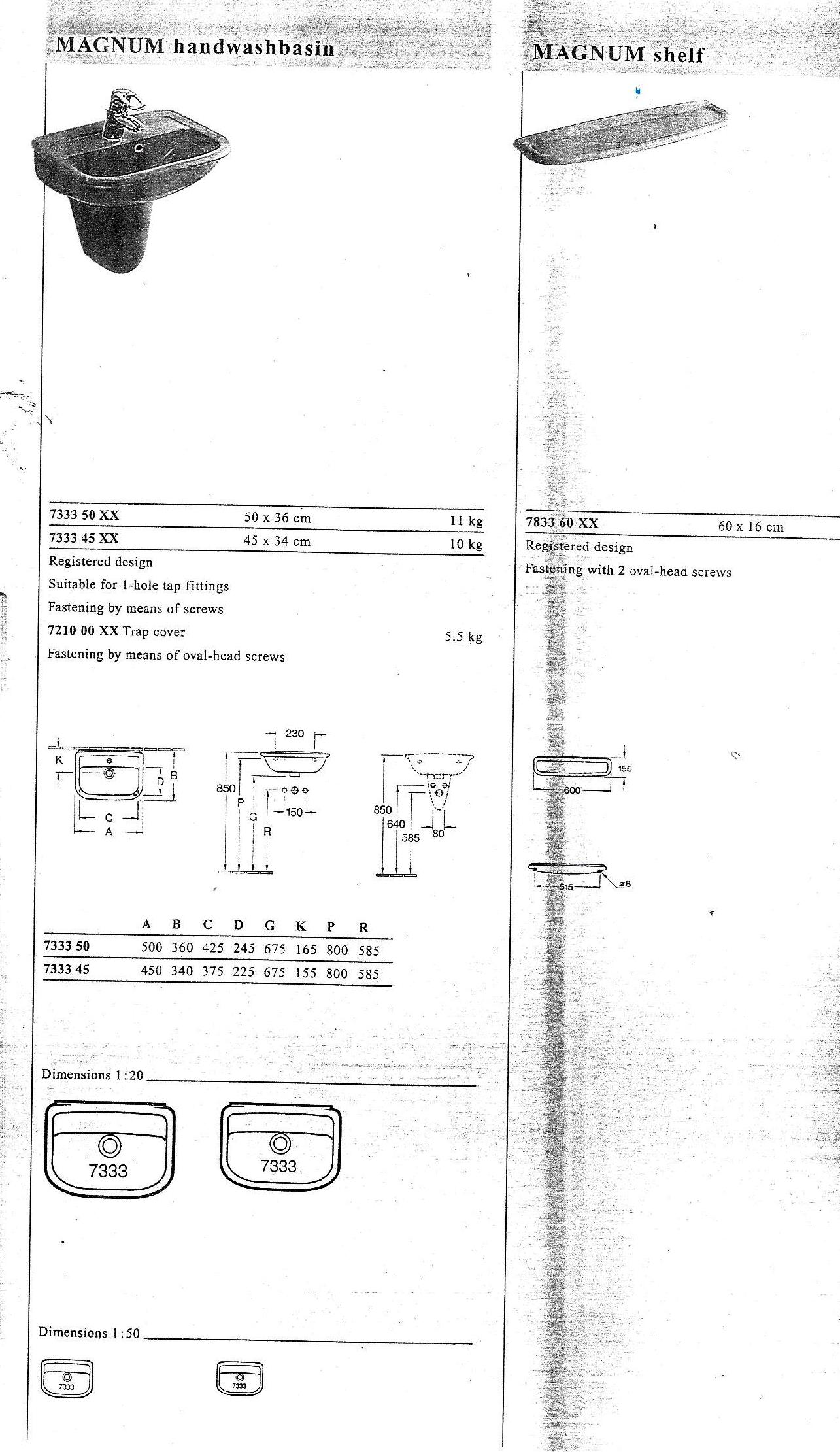

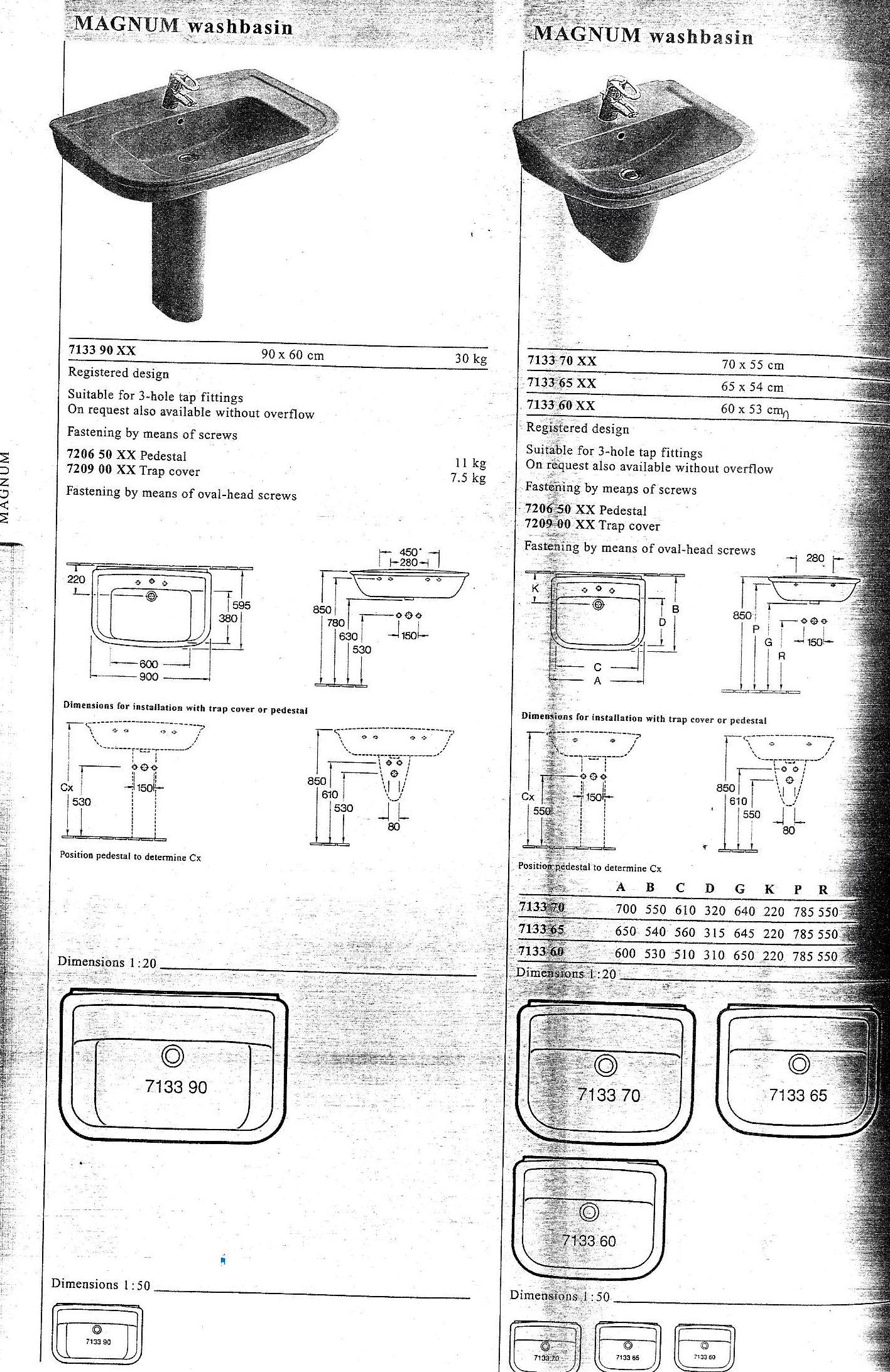

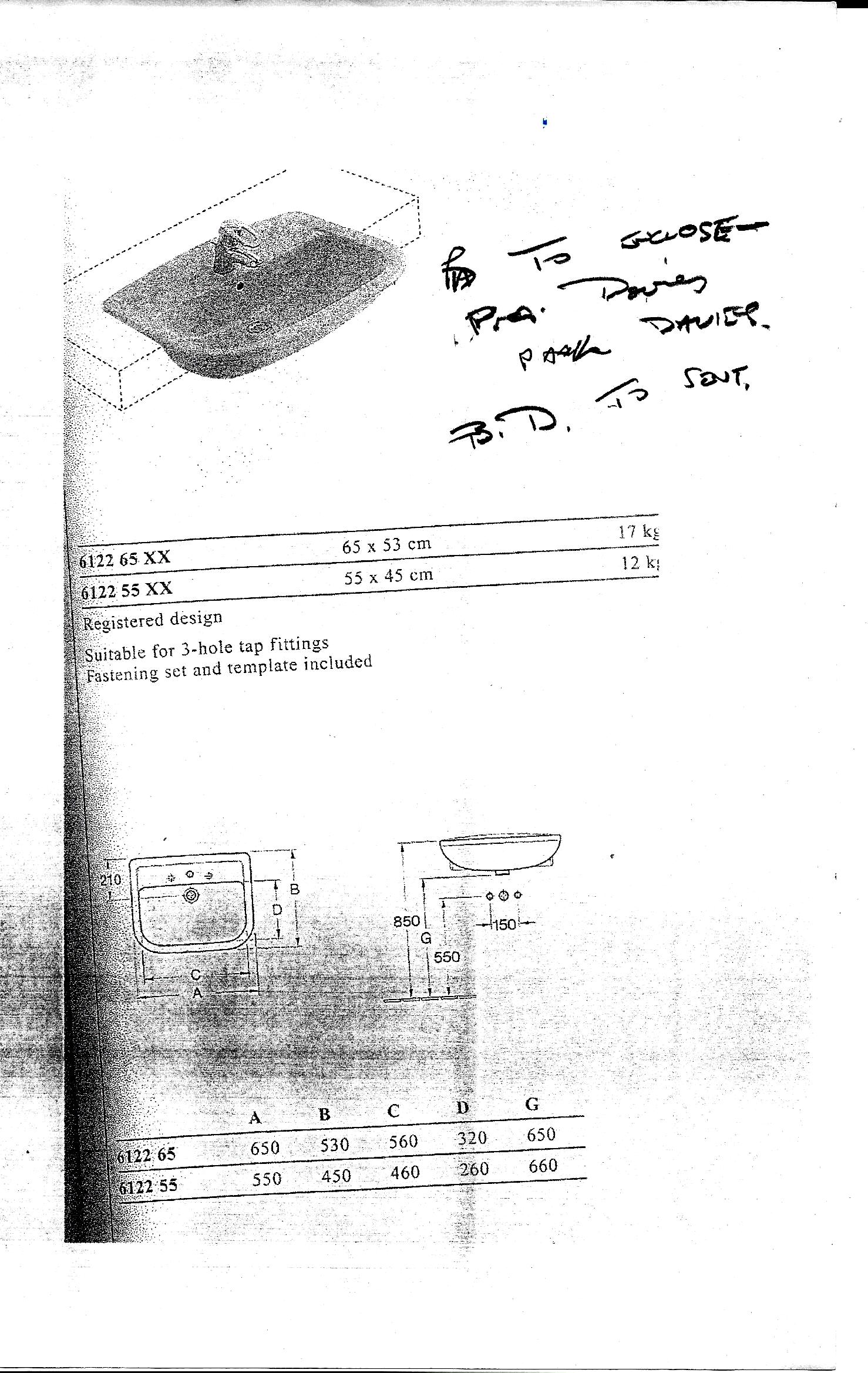

Villeroy & Boch Magnum Range

Toilet Cistern

The concealed cistern used in The Van Alen is readily available as a complete unit or as spare parts

GROHE 37945SH0 | Adagio Single Flush Concealed Cistern

https://www.grohe.co.uk/en_gb/-flushing-cistern-for-wc-6l-37945SH0.html

Post boxes

Brabantia, 39 mail boxes purchased in 2016 from Post Box Shop,  product code ‘B100 RAL 1015’

 www.postboxshop.com

[email protected]

Model changed to D100 and 4 ordered in 2020 from Post Box Shop

The Decayeux D100 post box is available in RAL 1015 finish. But it would be on an extended delivery, as it is not a standard colour for Decayeux.  You could try a company called Grant Haze Ltd. Who are in the South east. Tel number 0147483251.

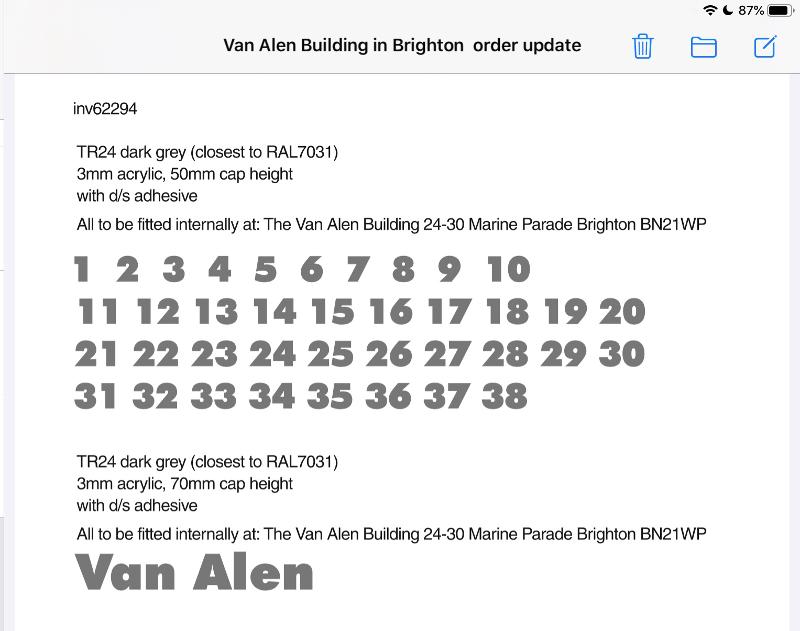

Numbers on the post boxes arefrom  www.sussexsigncentre.co.uk

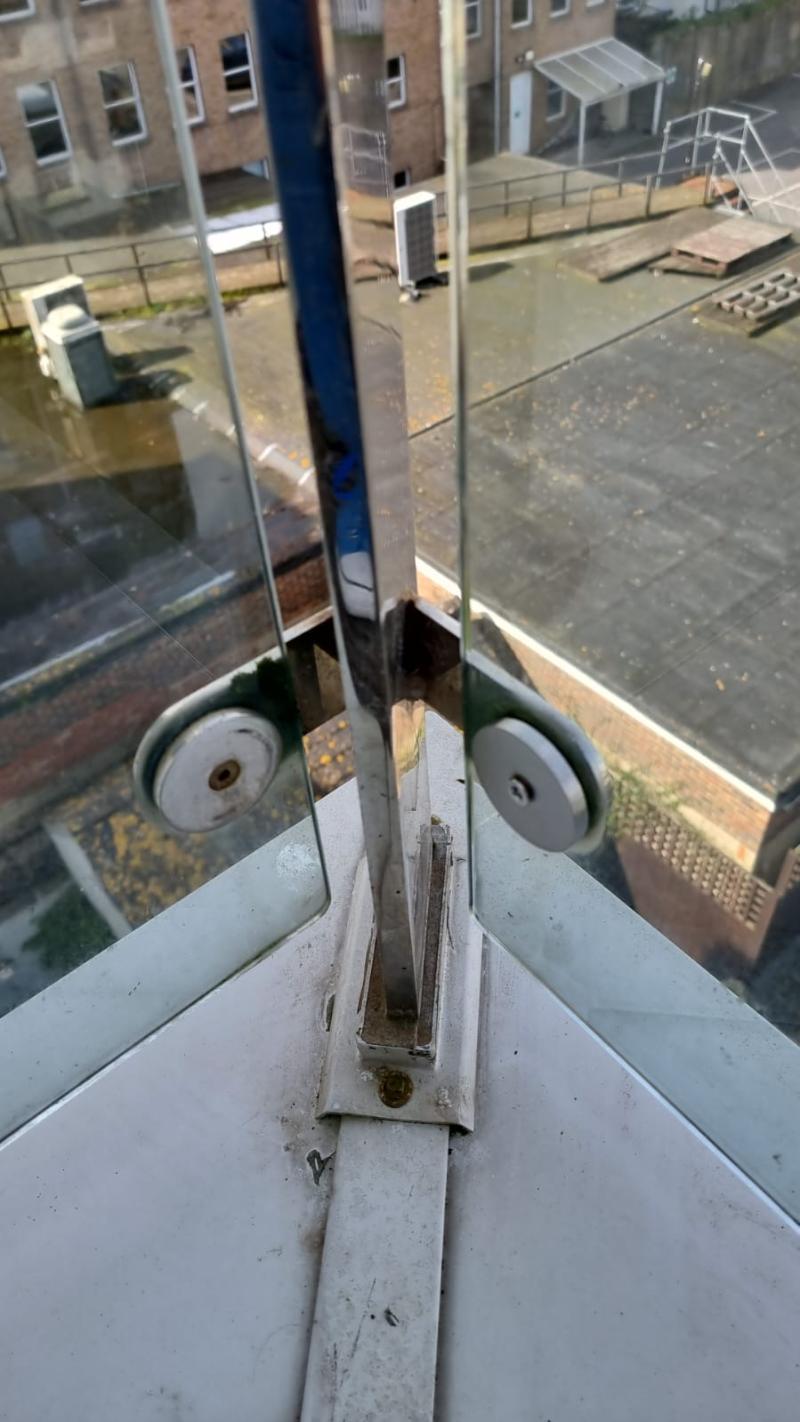

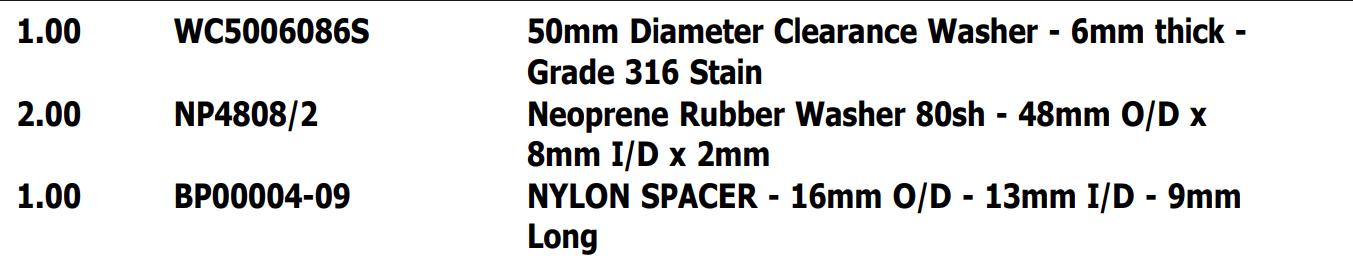

Balcony fixings

M6 stainless steel countersunk head 50mm screw

50mm marine grade stainless steel washer from PAUL STARTINManaging Director01543 624 780[email protected]


The original sales brochure 2001 - Typeface Parisian


House numbers in metal don’t always correspond to typefaces used in print, and that appears to be the case with The Van Alen apartment door numbers

Perform a bit of surgery to the middle protrusion, and the fonts Candida Medium or Radiant Bold are similar:
http://www.myfonts.com/fonts/ef/candida/
http://www.myfonts.com/fonts/ef/radiant/


Render specification

  • The Scratch Coat/Dubbing Coat is traditional sand and cement render on to brickwork
  • Over Skimmed with STO Armat Classic With Mesh.
  • Finished with STO Stolit K
  • All fire rated as non-combustible, A2-s1, d0

Lift Specification

KONE Elevator Type MonoSpace Std

Rated Load 630 kg / 8 persons

Rated Speed 1 m/s

Travel Height 21 m

Number of Floors 7

Shutters

he shutter company we used within Flat 1 are LBS Group and they can be contacted on Tel 0208 517 6655 or via email on [email protected].
